Networks

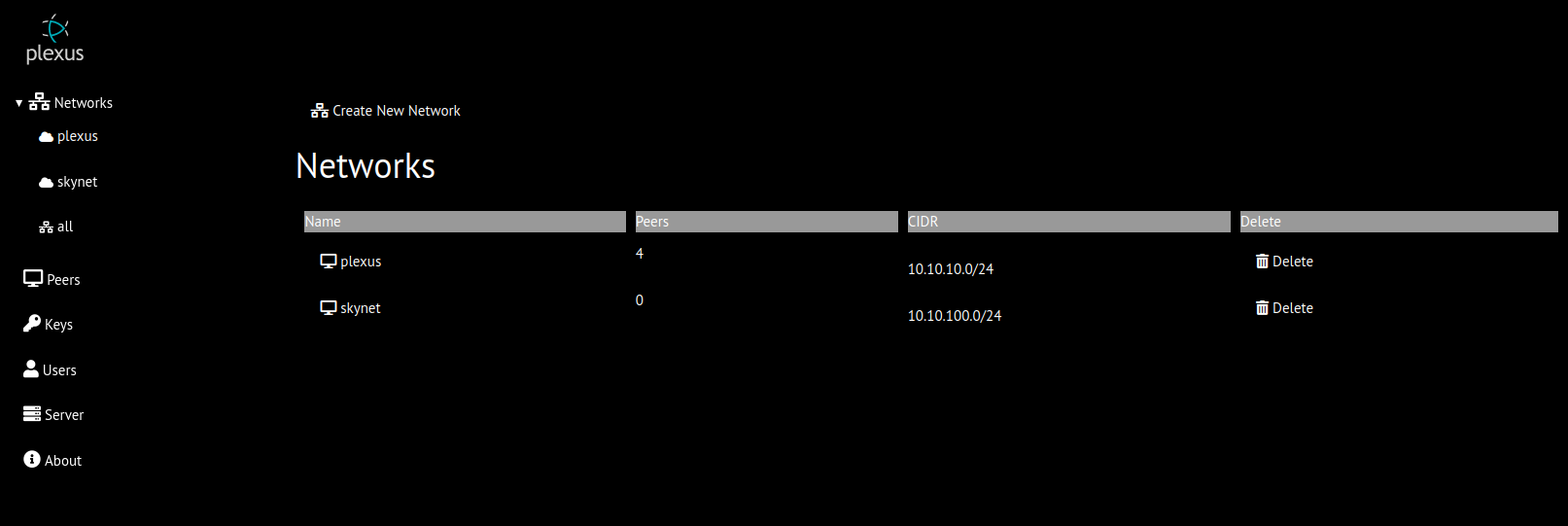

The main network page displays a listing of all networks and the ability to create new or delete existing networks
Create New Network

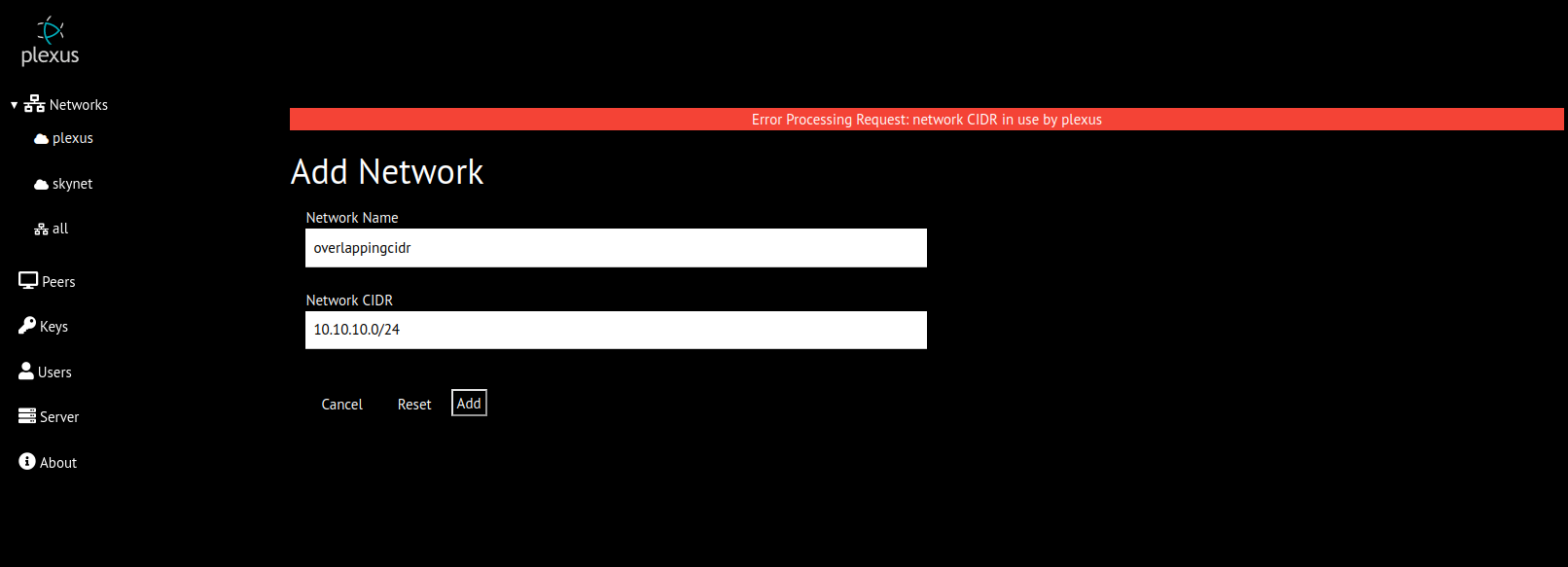

To add a new network, the network name and network CIDR must be specified. The network name is limited to 255 characters consisting of lowercase letters, numerals and hyphen. The network CIDR is normalized (eg. your can enter 10.10.11.25/20 and it will be normalized to 10.10.0.0/20). Network names and CIDRs are checked against existing networks for overlap.
Delete Network
Clicking the delete network button will present a confirmation prompt. If confirmed, the network will be deleted and all peers will be notified.
Network Details

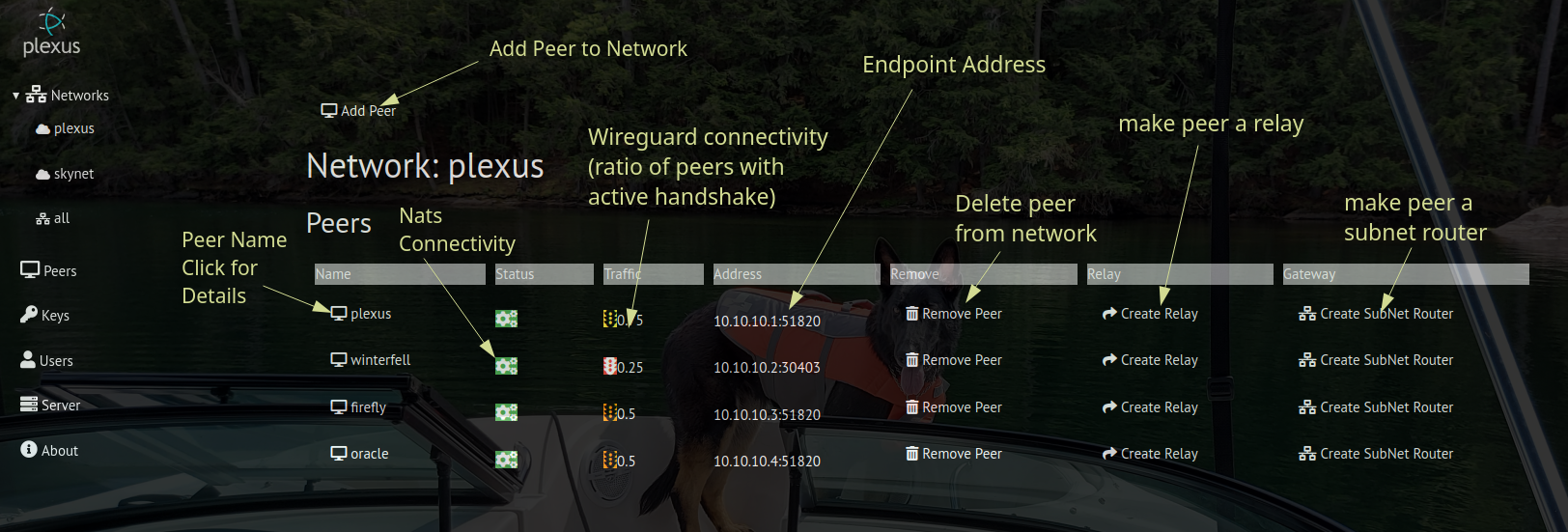

The network details pages displays all peers in current network and a button to add a new peer to the network. Selecting the new peer button will display a modal dialog that contains a listing (name, endpoint and connection status) of all peers not in current network. Selecting a peer will add it to the network unless the peer is not connected.
For each peer, the following data and controls are displayed
| Heading | Detail |
|---|---|
| Name | Selecting the peer name will display additional details |
| Status | Indicator (green/red) of nats connectivity between server and peer |
| Traffic | Indicator (green/yellow/orange/red) of wireguard connectivity |
| Address | network IP and wireguard listen port |
| Remove | Button (with confirmation) to delete peer from network |
| Relay | Relay status and button to create/delete relay |
| Gateway | Button to create/delete subnet router |
